Cummins ISX15 Oil Cooler Leak Symptoms and Repair

Categories:

The Cummins ISX15 is a legend in heavy-duty engines, but even legends have flaws. One of the most notorious issues? Oil cooler leaks. A failing oil cooler can lead to catastrophic engine damage if ignored, mixing coolant and oil or causing overheating. Whether you’re hauling cross-country or running local routes, here’s how to spot the signs of a leak and tackle repairs before it’s too late.


Spotting the Symptoms: Is Your ISX15’s Oil Cooler Failing?

The oil cooler’s job is simple: keep engine oil at optimal temps by exchanging heat with coolant. When it fails, the results are hard to miss:

  1. Coolant in Oil (or Vice Versa)
  • Milky, frothy oil on the dipstick or coolant reservoir.
  • A chocolate-brown sludge in the oil pan.
  1. Overheating Engine
  • Temp gauges spiking, especially under load.
  • Coolant loss with no visible external leaks.
  1. Oil Leaks Around the Cooler
  • Puddles of oil or coolant beneath the engine.
  • Wet, greasy residue near the oil filter housing.
  1. Low Oil Pressure Warnings
  • Clogged oil passages from coolant contamination reduce pressure.

If you notice these signs, shut off the engine immediately. Driving with a compromised oil cooler risks seized bearings, warped heads, or a totaled engine.


Why Do ISX15 Oil Coolers Fail?

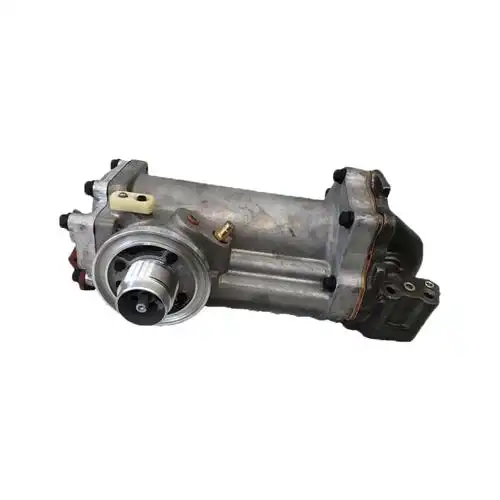

The ISX15’s oil cooler is a sandwich-style design with stacked plates and gaskets. Over time, three issues cause leaks:

  • Corrosion: Coolant additives break down, eating through aluminum plates.
  • Vibration: Constant engine shaking cracks welds or loosens bolts.
  • Contaminated Fluids: Dirty oil or coolant accelerates wear on seals and gaskets.

Post-2007 ISX15 engines (with the CM870/871/2250 systems) are especially prone due to higher operating pressures.


Step-by-Step Repair Guide

Replacing a faulty oil cooler isn’t cheap, but it’s far cheaper than a new engine. Here’s how to tackle it:

Tools Needed:

  • Socket set (metric)
  • Torque wrench
  • New oil cooler assembly (OEM Cummins or aftermarket kit)
  • Coolant, oil, and fresh gaskets

Steps:

  1. Drain Fluids: Remove coolant and oil to prevent spills.
  2. Disconnect Lines: Unbolt the oil cooler from the block, noting the coolant hose and oil line connections.
  3. Inspect for Damage: Check the cooler’s plates for cracks and the housing for warping.
  4. Install the New Cooler:
  • Use a Cummins OEM kit (part #5299409) for reliability.
  • Apply sealant to gaskets and torque bolts to spec (typically 25–30 ft-lbs).
  1. Refill Fluids: Use heavy-duty coolant (e.g., Fleetguard ES Compleat) and 15W-40 oil.
  2. Pressure Test: Run the engine and check for leaks.

Pro Tip: Upgrade to an aftermarket oil cooler (like Sinister Diesel’s reinforced kit) if you’re frequently towing or in extreme climates.


Preventing Future Oil Cooler Leaks

  1. Flush Coolant Annually: Use a 50/50 mix of distilled water and nitrite-free coolant.
  2. Stick to Oil Change Intervals: Dirty oil clogs cooler passages.
  3. Install a Bypass Filter: Reduces contaminants in the oil system.
  4. Check Mounting Bolts: Retorque annually to combat vibration loosening.

FAQs: Your ISX15 Oil Cooler Questions Answered

Q: Can I drive short distances with a leaking oil cooler?
A: Absolutely not. Even a small leak can escalate quickly, leading to coolant/oil mixing. Tow the truck to a shop.

Q: How much does an ISX15 oil cooler replacement cost?
A: Parts range from $600–$1,200 (OEM vs. aftermarket). Labor adds $800–$1,500, depending on shop rates.

Q: Are oil cooler failures linked to EGR issues?
A: Indirectly. Soot from EGR systems can contaminate oil, accelerating cooler wear. Regular EGR cleaning helps.

Q: Can I reuse my old cooler after repairing it?
A: Not recommended. Most failures stem from internal corrosion, which DIY fixes can’t resolve.

Q: Are aftermarket oil coolers as reliable as OEM?
A: Reputable brands (e.g., Mishimoto, Sinister Diesel) often offer improved durability. Avoid no-name kits.


Final Thoughts

A leaking oil cooler on your Cummins ISX15 isn’t just a repair—it’s a wake-up call. Catching it early saves thousands in engine repairs. Stick to preventative maintenance, invest in quality parts, and always address overheating warnings immediately.

Related Reading: If you’re battling both cooling and turbo issues (a common combo in diesels), our guide on turbo boost pressure loss in Ford PowerStrokes explains how to diagnose airflow problems that strain your engine.

Got more questions? Drop them below—we’ll help you keep your ISX15 running smoother for longer! 🚛💨
