The Aisin AS69RC is the stronger transmission, built for the high output 6.7 Cummins with a torque capacity around 850 to 950 lb ft and gearing made for heavy towing. The 68RFE shifts smoother, costs less to service, and handles light to moderate towing just fine. If you tow heavy often, get the Aisin. If your truck is a daily driver that pulls a trailer on weekends, the 68RFE will serve you well.
- The Aisin AS69RC was introduced in 2013 because the 68RFE could not handle the high output Cummins torque, and it remains exclusive to the HO engine
- Aisin wins on strength with a 3.75 to 1 first gear and roughly 850 to 950 lb ft of torque capacity, but needs fluid changes every 30000 miles
- The 68RFE shifts smoother and faster, goes 120000 miles between services, and has far more aftermarket upgrade options
- Match the transmission to the work: heavy fifth wheel or equipment trailer means Aisin, lighter towing and daily driving means the 68RFE is plenty
Shopping for a Ram Cummins means answering one question early: Aisin or 68RFE. Get it wrong and you either overpaid for strength you never use or bought a transmission that will hate your trailer. I have worked on plenty of both, and the honest answer is that neither is junk and neither is perfect. They are built for different jobs.
Here is how they actually compare, from someone who has had both apart on the bench.
Where each transmission comes from
The Chrysler 68RFE is the standard automatic behind the 6.7 Cummins in Ram 2500 trucks and standard output 3500 trucks. It is a six speed, fully electronic unit that Chrysler designed in house. The 8 in its name is Chryslers internal strength rating on a 1 to 10 scale, so think of it as a strong light duty transmission rather than a true medium duty one.
The Aisin AS69RC arrived in 2013 for one reason: the high output version of the 6.7 Cummins made more torque than the 68RFE could reliably handle. Aisin is the Japanese transmission giant behind half the automatics in Toyota products, and the AS69RC is their heavy duty six speed built for commercial level work. It only comes paired with the high output Cummins, which makes it exclusive and expensive. You cannot order it with the standard output engine.
Strength: Aisin takes this one clearly

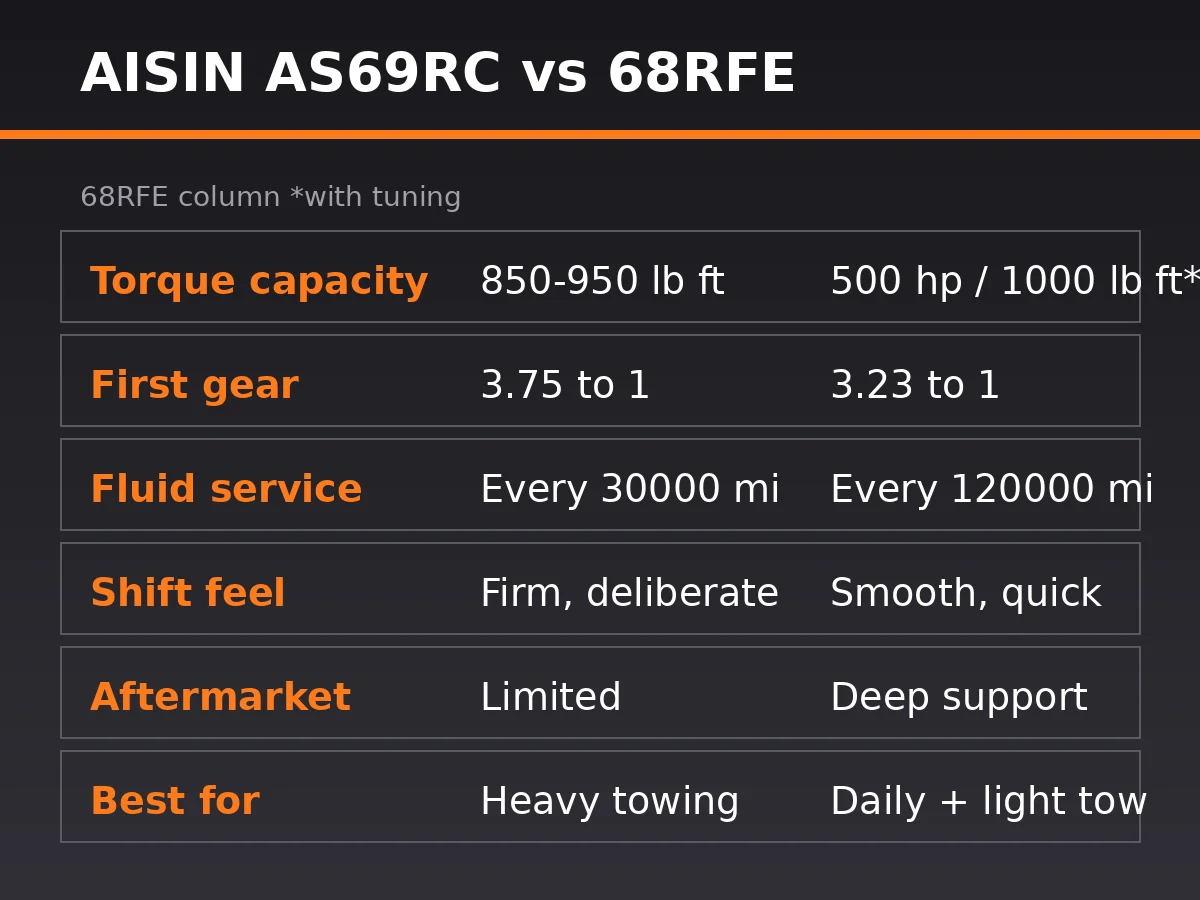

The numbers tell the story. The AS69RC carries a torque capacity in the 850 to 950 lb ft range and a gross vehicle weight rating around 33000 pounds. Its first gear is a deep 3.75 to 1 with a 2.00 to 1 second gear, which puts the Cummins low end pulling power to work getting heavy loads rolling. Full gear spread runs 3.75, 2.00, 1.34, 1.00, 0.77, 0.63.
The 68RFE is rated for a 30300 pound gross combined weight and will hold roughly 500 rear wheel horsepower and 1000 lb ft with good tuning, which is respectable. Its ratios run 3.23, 1.84, 1.41, 1.00, 0.816, 0.625. Taller first gear, closer to a car like feel off the line, and perfectly fine until the loads get serious.
In the real world, the Aisin shrugs at a 16000 pound fifth wheel in the mountains. The 68RFE will pull the same trailer, but it is working near its ceiling, and heat becomes the enemy on long grades. I have seen 68RFE trucks do the job for years with an eye on the transmission temperature, and I have seen them cook clutches when the owner ignored the gauge.
Shifting and driving manners: 68RFE wins
Here is where the 68RFE punches back. It shifts smoother and faster than the Aisin, thanks to a dual face lockup clutch in the torque converter and less reliance on torque de rating between shifts. The engine does not have to pull power as aggressively for the 68RFE to change gears, so shifts feel crisp instead of clumsy.
The Aisin shifts like what it is: a commercial grade box. Positive, deliberate, occasionally abrupt, especially when cold. Nobody buys an Aisin for shift feel. You buy it because it holds.
Reliability: both have their demons
Neither transmission is bulletproof, and anyone who tells you otherwise is selling something.
The 68RFE weak points are well documented: valve body wear, clutch packs that give up under sustained heavy load, and input shaft and drum issues when power goes up. Most failures I see trace back to heat, neglected fluid, or tuning beyond what the hard parts can take.
The Aisin weak points cost more to fix. The torque converter is a complicated multi component design with pieces that wear. The high pressure oil pump gears wear. The valve body has its issues, and the K2 hub is a known wear point. The Aisin is stronger, but when it breaks, the bill is bigger and fewer shops know these units inside out.
Service costs: 68RFE by a mile
This one is not close. The 68RFE goes 120000 miles between fluid and filter changes under normal use. The Aisin needs fresh fluid every 30000 miles. Over the life of the truck, that is a real money difference, and skipping Aisin services is the fastest way I know to kill a valve body.
Parts and labour follow the same pattern. 68RFE parts are everywhere and every transmission shop has built dozens. Aisin parts cost more, the units are heavier to handle, and specialist knowledge is thinner on the ground.
Aftermarket support: 68RFE wins again
If you plan to tune your truck, this matters. The 68RFE has a deep aftermarket: upgraded clutch packs, billet input and intermediate shafts, improved valve bodies, and torque converters from several proven builders. You can build a 68RFE to hold serious power for less than the price jump to the Aisin truck.
The Aisin aftermarket is thin. Fewer builders, fewer parts, less tuning support. It is strong from the factory, which is the point, but if you outgrow stock power levels you have fewer places to go.
The price question
To get the Aisin you must buy the high output Cummins, and that package runs roughly 2800 dollars more than the standard output truck with the 68RFE, based on recent Ram pricing. That is not a huge premium for what you get, but it is only money well spent if you tow heavy enough to need it.
Which one should you want
It comes down to the trailer, not the badge.
Buy the Aisin if you tow heavy fifth wheels, goosenecks, or equipment trailers regularly, especially in the mountains. The deep first gear, the torque capacity, and the commercial grade build are made for exactly that life. Accept the 30000 mile services and the higher repair bills as the cost of the capability.
Buy the 68RFE if your truck is a daily driver, a work truck with moderate loads, or a weekend tower pulling under 12000 pounds. It shifts better, costs less to own, and has the aftermarket to grow with you if your needs change. Just respect its limits: keep the tuning sane, watch your temperatures, and service it on time.
The wrong choice is buying the Aisin for grocery runs or buying the 68RFE for a 18000 pound toy hauler and a hot tune. Match the transmission to the work and both of these will treat you right. If you are shopping used, run any candidate through the checks in my used diesel inspection guide before money changes hands, because the transmission is only one chapter of the story.
Related reading
- How to Inspect a Used Diesel Truck Before You Buy
- Best Used Diesel Trucks to Buy in Canada Right Now
- 6.7 Cummins vs 6.7 Powerstroke for Towing
- Transmission Running Hot at Idle: Causes and Fixes
Frequently asked questions
Should I pay extra for the Aisin transmission in a Ram 3500?
Only if you will use what it offers. The Aisin comes bundled with the high output Cummins, and that package costs roughly 2800 dollars more than the standard output truck with the 68RFE. If you tow a heavy fifth wheel, a gooseneck, or equipment regularly, the stronger gearing and higher torque capacity are worth it. If you tow a boat twice a summer, save your money. The 68RFE is a good transmission when it is not asked to do a job it was never built for.
Is the 68RFE a bad transmission?
No, it is a misunderstood one. The 68RFE is smooth, quick shifting, and reliable inside its design limits, and it has decent aftermarket support for building it stronger. Its bad reputation comes from owners who tune their trucks to 500 plus horsepower and then blame the transmission when the clutches give up. Treat it like the light duty unit it is, service it on time, and it will last. Ask it to hold big tuning and heavy trailers at the same time and you will be rebuilding it.
What goes wrong with the Aisin AS69RC?
The usual suspects are the torque converter, which is a complicated multi piece design with components that wear out, the valve body, and the high pressure oil pump gears. The K2 hub is another known wear point. None of this means the Aisin is fragile. It means that when it does need work, the work costs more than a 68RFE job, and fewer shops have deep experience with it. Budget for the 30000 mile service intervals too, because skipping them is how valve bodies die.
Can I swap an Aisin into a truck that came with a 68RFE?
In theory yes, in practice almost never worth it. The swap needs the transmission, the high output engine calibration, wiring, cooling, and programming to all agree with each other, and the cost quickly passes what a built 68RFE would run you. If you already own a 68RFE truck and need more holding power, put the money into a quality rebuild with upgraded clutches, a billet input shaft, and a good valve body. You will spend less and end up with a transmission built for exactly how you use the truck.
